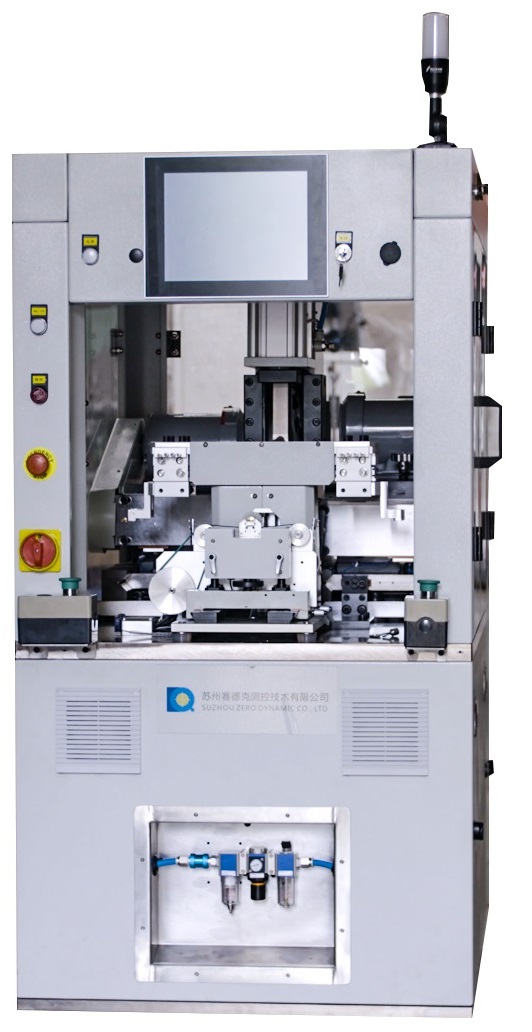

İki İstasyonlu Otomatik Fırçalı Rotor Balans Makinesi Model XH-9600A

Product Parameters
Serial No.	Item Details	Parameter Range
1	Equipment model	XH-9600AⅡ
2	Rotor weight	0.01-0.2Kg
3	Rotor diameter range	φ6-φ30mm
4	Production cycle time	≤20S
5	Supporting rotor span	20-120mm
6	Balanced revolving speed range	2000-6000rpm
7	Drive method	Belt drive/DC motor drive
8	Detection of unbalance	Acceleration sensor
9	Detection of unbalance angle	Optical fiber sensor
10	Power supply	220V single phase
11	Balance function	Double plane dynamic balance
12	Operation interface	Windows Chinese
13	Measurement system	XH-9600
14	Maximum measurement accuracy	0.01g.mm
15	Equipment colour	Computer Gray
16	Equipment external dimension	1000X1000X1800mm

Two Station Brushless Motor Rotor Automatic Balancing Machine

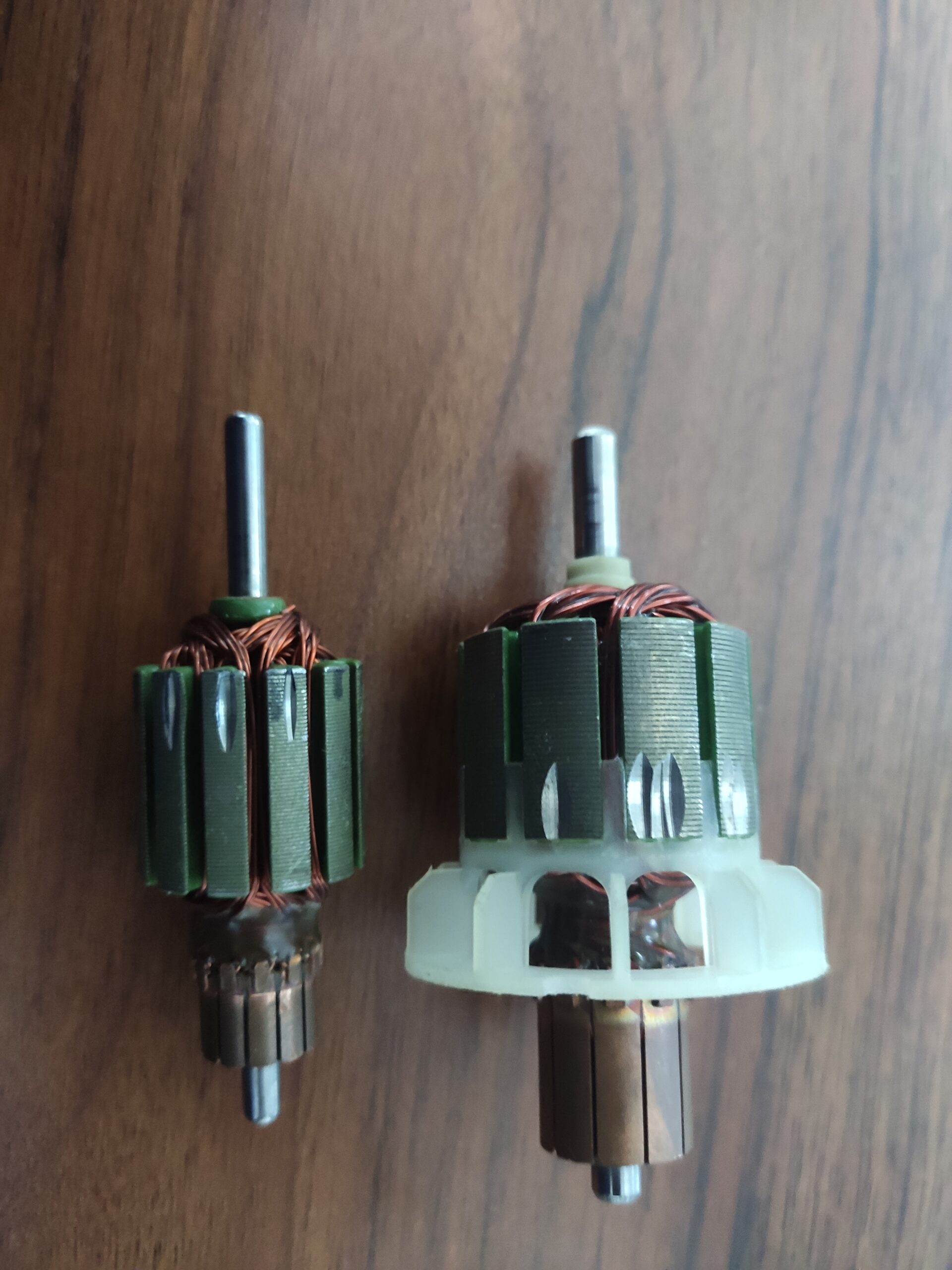

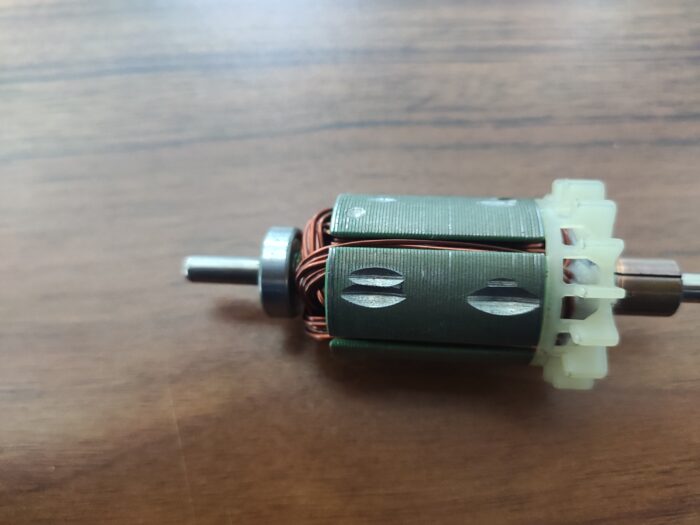

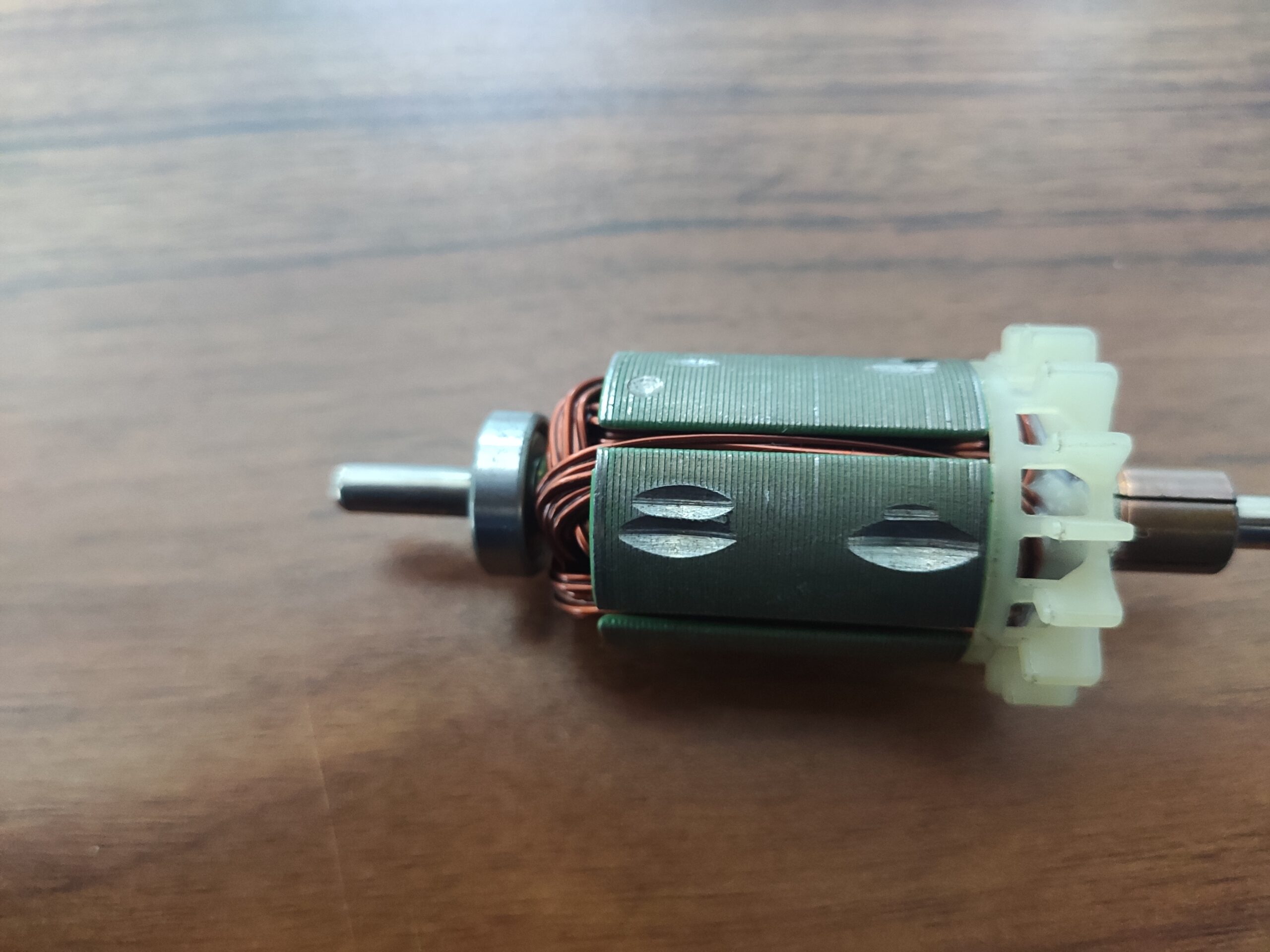

1. Application Range It is mainly applicable for high speed dynamic balance of micro motor small rotor and brushless motor magnetic rotor. 2. Equipment Features 2.1 There’s no need to re-calibrate for the same type of rotor with the same revolving speed, easy to setup. 2.2 The test software developed by our company has the data saving, exporting & printing and inquiry functions. 2.3 It has the MES data uploading function. 2.4 High accuracy, good repeatability. 2.5 Windows operation system, Chinese interface, easy to learn. 2.6 It support the barcode input and has strong traceability. 2.7 Automatic punch to remove material, remove the product after being qualified. High degree of automation. 2.8 The equipment has built-in alarm prompt, easy to locate the exact fault position. 2.9 Easy to replace drill bit, automatic iron fillings collection system.
