Product Parameters
Serial No.	Item Details	Parameter Range
1	Maximum mass of workpiece	16kg(including fixture)
2	Workpiece outer diameter range or milling diameter (A)	Φ130-350mm
3	Maximum height of workpiece (H)	≤100mm
4	Clamping diameter range	≤300mm
5	Maximum diameter for single balance	≤300mm
6	Maximum depth of milling & drilling	≤10mm
7	Cycle time	≤50s
8	Maximum drilling range	≤150°
9	Balanced revolving speed	≤3000r/min（adjustable）
10	Balance motor power	2KW(servo motor）
11	Balance measurement time	8-12 s
12	Unbalance reduction ratio	≥95%
13	Minimum attainable residual unbalance	≤1g.mm/KG
14	Working air pressure	0.4～0.6MPa
15	Working voltage	AC:380V/220V external
16	Equipment total power	≈8KW
17	Total weight	1500kg

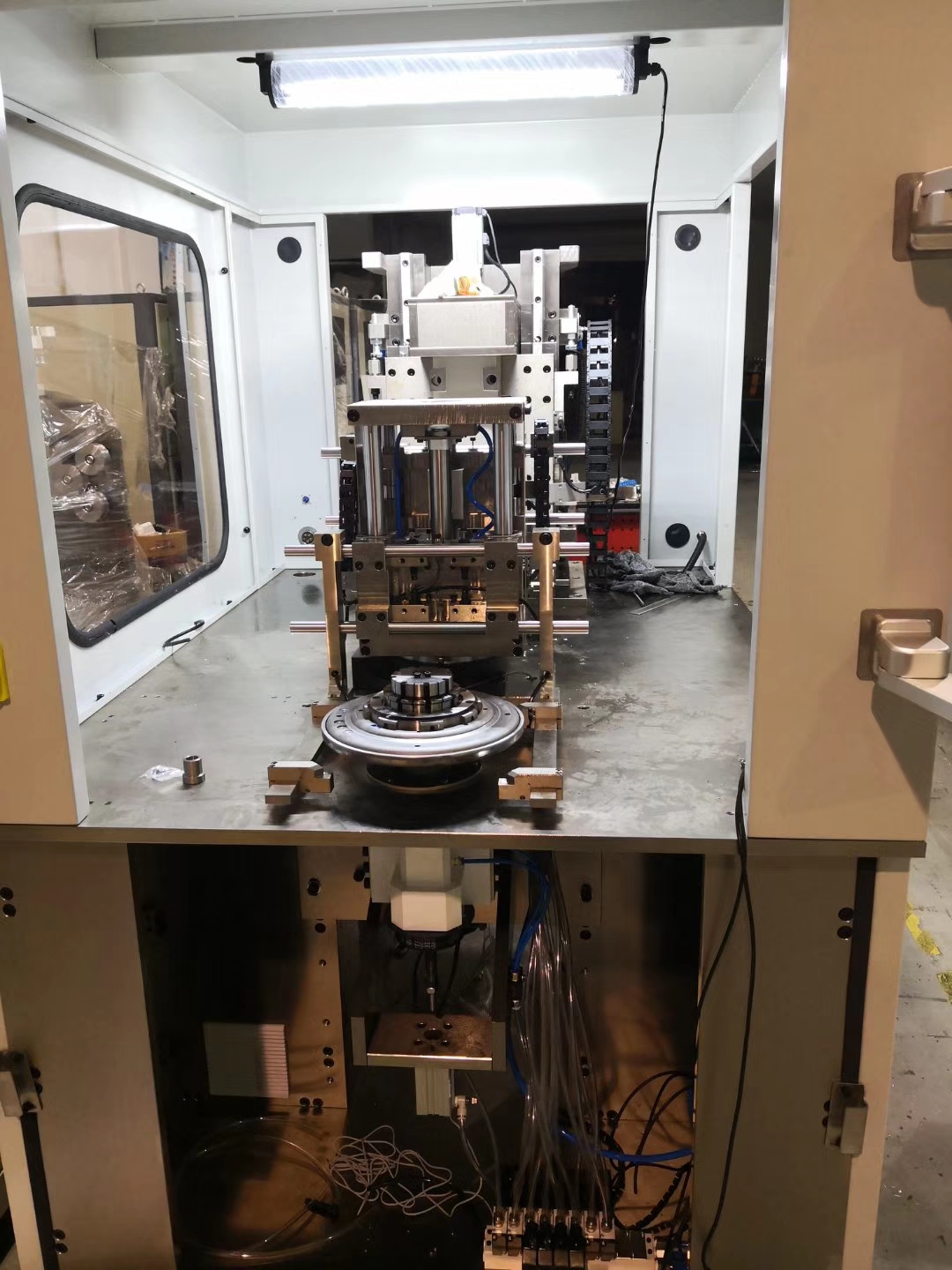

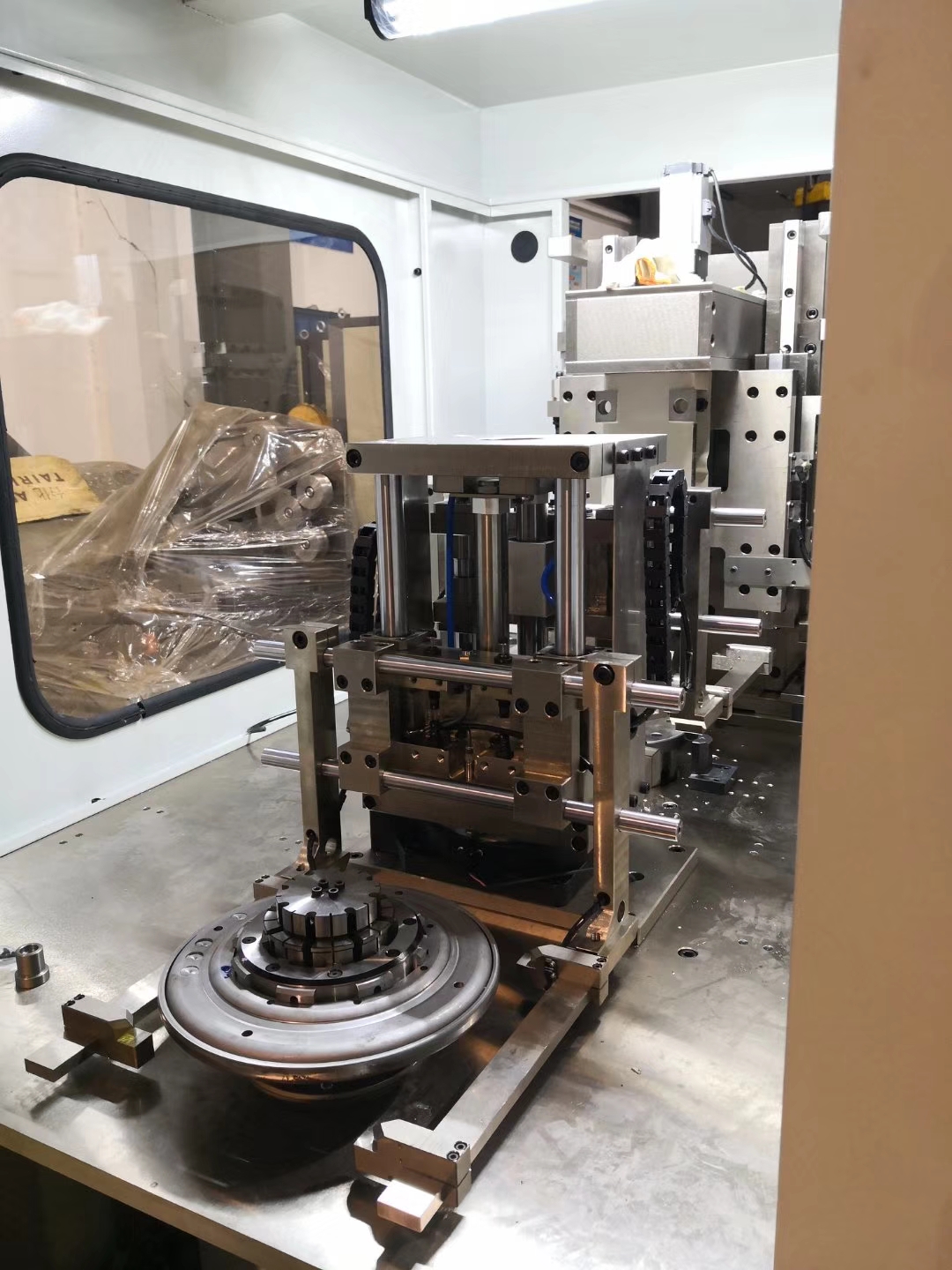

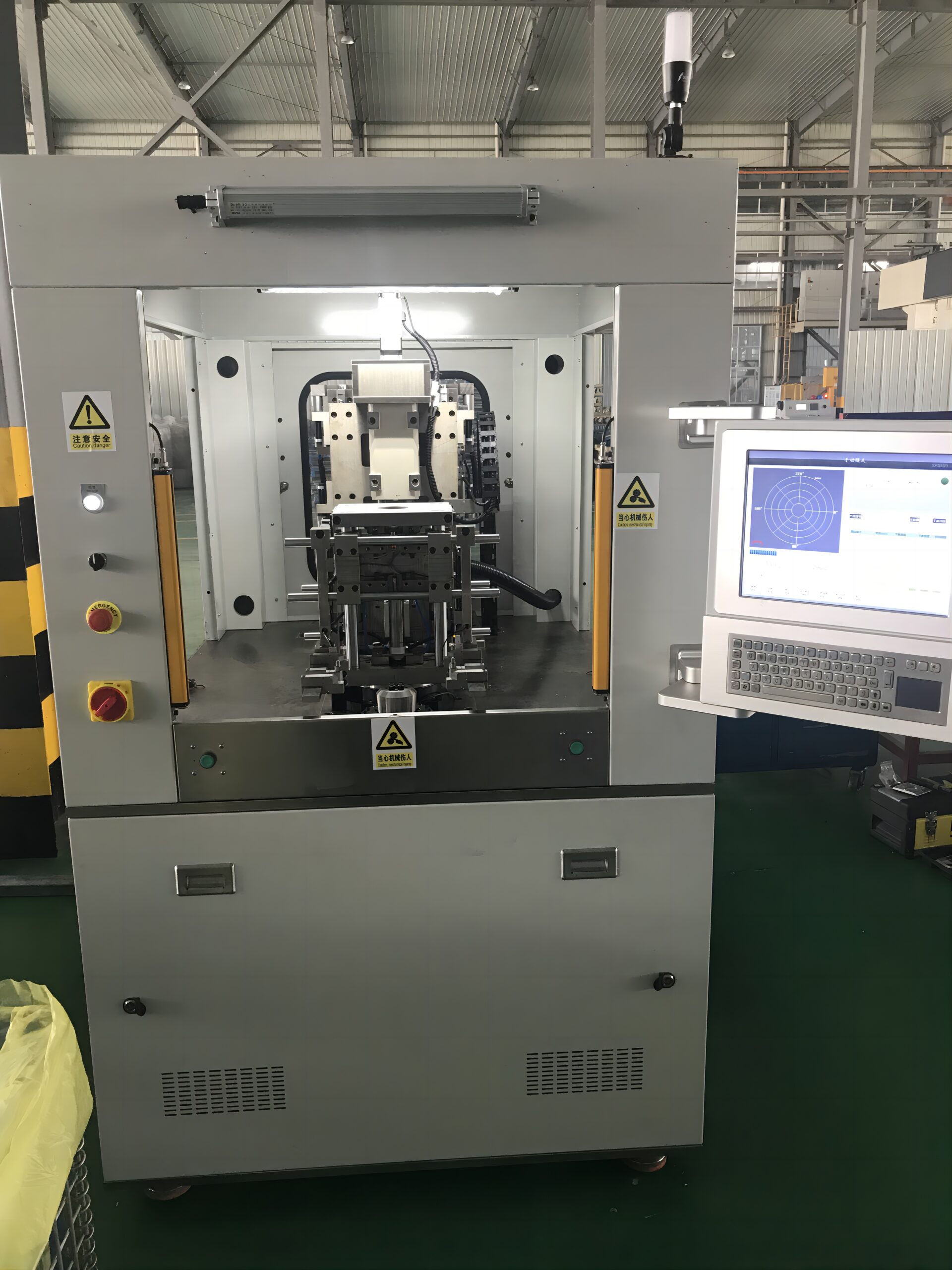

Two Station Flywheel Automatic Balancing Machine
1. Application Range and Main Function: The equipment is applicable for vertical double station single plane automatic balance test for disc products, with the functions of automatic balance measurement, automatic drilling correction. All the balance work is carried out from balance measurement, angle positioning, transport device, drilling correction and retest. QR code scanning spear can make record and tracker for products. The equipment has the features of short production cycle time and high efficiency. It can also be linked to the production line to accomplish automated production line and it can collect, output and display the data generated during the whole process. 2. Main Features: 2.1 The equipment uses high-sensitivity sensor and high-precision data acquisition system, the highest accuracy can meet G0.4 accuracy grade. Powerful multi-functional software has main functions such as single-plane dynamic balance measurement, double-plane dynamic balance measurement, vibration spectrum analysis, ISO1940 standard calculation, independent vibration value detection, measurement data traceability, saving and printing of measurement result. The equipment adopts Labview as the signal processing system and always maintains the leading technical level. 2.2 The main body of the machine is steel frame structure, dynamic balancing bracket, fixed motor drive plate, servo transport device, power head for automatic remove material, control system etc. The equipment can carry out automatic positioning and single plane drilling correction according to the unbalance value and angle displayed by the measurement system. The whole machine is protected by protective hood and door during the working process and has the abnormal alarm prompt light.

İki İstasyonlu Otomatik Volan Balans Makinesi Model XH-2630A

Application Range and Main Function:
The equipment is applicable for vertical double station single plane automatic balance test for disc products, with the functions of automatic balance measurement, automatic drilling correction.

Kategoriler: İki İstasyonlu Otomatik Rotor Balans Makinesi

Açıklama

Product Parameters
Serial No.	Item Details	Parameter Range
1	Maximum mass of workpiece	16kg(including fixture)
2	Workpiece outer diameter range or milling diameter (A)	Φ130-350mm
3	Maximum height of workpiece (H)	≤100mm
4	Clamping diameter range	≤300mm
5	Maximum diameter for single balance	≤300mm
6	Maximum depth of milling & drilling	≤10mm
7	Cycle time	≤50s
8	Maximum drilling range	≤150°
9	Balanced revolving speed	≤3000r/min（adjustable）
10	Balance motor power	2KW(servo motor）
11	Balance measurement time	8-12 s
12	Unbalance reduction ratio	≥95%
13	Minimum attainable residual unbalance	≤1g.mm/KG
14	Working air pressure	0.4～0.6MPa
15	Working voltage	AC:380V/220V external
16	Equipment total power	≈8KW
17	Total weight	1500kg

Two Station Flywheel Automatic Balancing Machine
1. Application Range and Main Function: The equipment is applicable for vertical double station single plane automatic balance test for disc products, with the functions of automatic balance measurement, automatic drilling correction. All the balance work is carried out from balance measurement, angle positioning, transport device, drilling correction and retest. QR code scanning spear can make record and tracker for products. The equipment has the features of short production cycle time and high efficiency. It can also be linked to the production line to accomplish automated production line and it can collect, output and display the data generated during the whole process. 2. Main Features: 2.1 The equipment uses high-sensitivity sensor and high-precision data acquisition system, the highest accuracy can meet G0.4 accuracy grade. Powerful multi-functional software has main functions such as single-plane dynamic balance measurement, double-plane dynamic balance measurement, vibration spectrum analysis, ISO1940 standard calculation, independent vibration value detection, measurement data traceability, saving and printing of measurement result. The equipment adopts Labview as the signal processing system and always maintains the leading technical level. 2.2 The main body of the machine is steel frame structure, dynamic balancing bracket, fixed motor drive plate, servo transport device, power head for automatic remove material, control system etc. The equipment can carry out automatic positioning and single plane drilling correction according to the unbalance value and angle displayed by the measurement system. The whole machine is protected by protective hood and door during the working process and has the abnormal alarm prompt light.
