Otomatik Fan Balans Makinesi Model XH-5601AH

Equipment Application Range

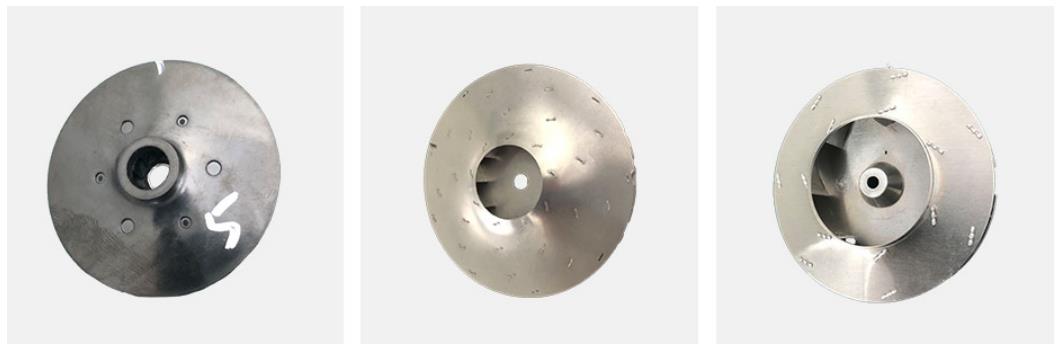

The balancing machine is applicable for the dynamic balance test and automatic scissor remove material of hole type plastic and aluminum alloy vacuum cleaner fan with diameter of 25mm – 120mm and center hole of 1.5mm – 8mm.

Product Parameters
Serial No.	Item Details	Parameter Range
1	Equipment Model	XH5601AH
2	Test weight range	10-200 g
3	Impeller diameter range	Φ40-120 mm
4	Hole type impeller shaft diameter range	Φ1.5、Φ2、Φ3、Φ4、Φ5、Φ6、Φ8 mm（optional）
5	Balanced revolving speed range	1500-5000rpm
6	Drive method	Servo motor
7	Single plane high speed dynamic balance	In conformity with ISO1940 Standard, G1
8	Detection of unbalance	Acceleration sensor
9	Detection of unbalance angle	Laser sensor
10	Equipment power supply	220V single phase
11	Balance function	Single plane dynamic balance
12	Operation interface	Windows Chinese
13	Measurement system	XH-8600
14	Measurement clamping method	Elastic expandable sleeve
15	Maximum balance accuracy	±1mg
16	Cycle time	≤20S
17	Equipment external dimension	500X450X760 mm

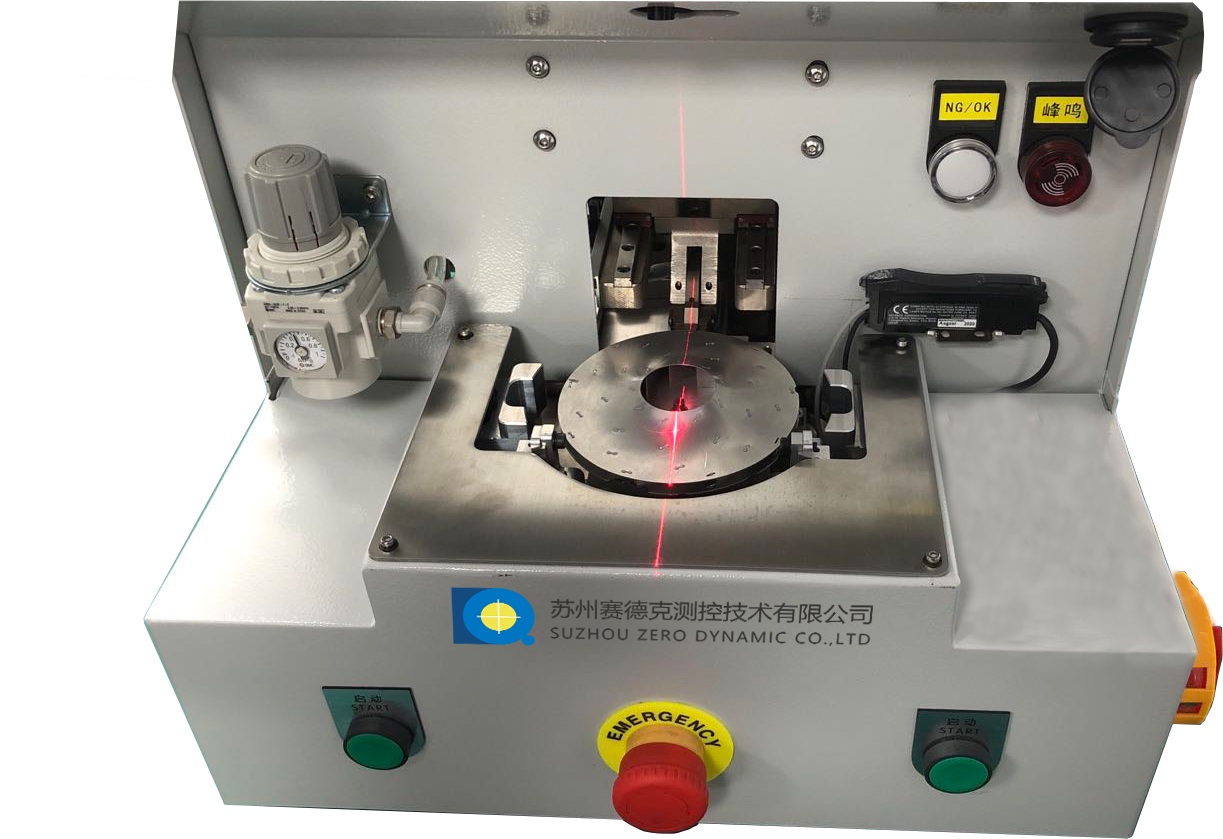

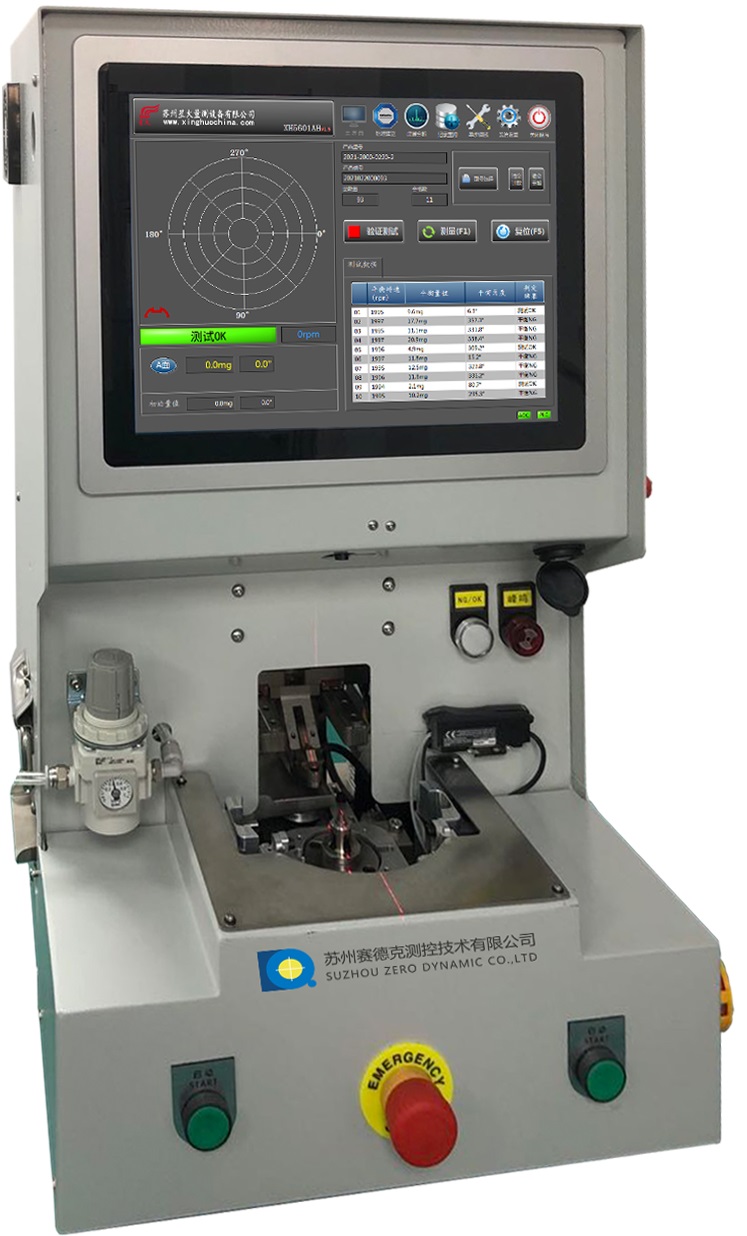

Impeller Automatic Balancing Machine
1. Equipment Application Range The balancing machine is applicable for the dynamic balance test and automatic scissor remove material of hole type plastic and aluminum alloy vacuum cleaner fan with diameter of 25mm – 120mm and center hole of 1.5mm – 8mm. The balancing machine adopts high-precision elastic expandable sleeve structure which has high balance accuracy (with repeat measurement accuracy of ±1mg). The machine uses a scissor structure for automatic balance correction, which has higher productivity and precision than manual balance correction. Zero Dynamic’s self-developed dynamic balance software can collect, output and display the data generated during the whole process, providing a reliable source of data for subsequent quality improvement. 2. Equipment Features 2.1 High compatibility. The equipment is applicable for all kinds of hole type plastic and aluminium alloy fan blades/impellers with diameters from Φ25mm to Φ120mm and centre holes from Φ1.5mm to Φ8mm with weights from 10 to 200 g. 2.2 High production efficiency. The equipment can automatically complete the balancing initial test, automatic scissor remove material and re-testing processes. One person can operate 2-3 machines, saving labour cost. 2.3 Easy changeover. The structure of the workpiece fixture is simple, easy to disassemble, and the operator can do changeover independently through simple training. 2.4 High precision. Precision rising sleeve structure, high-precision acceleration sensor, customised data acquisition card with self-developed high-precision dynamic balancing software, the precision of the equipment meets the ISO1940 G1, which meets the actual use requirements of most products.
